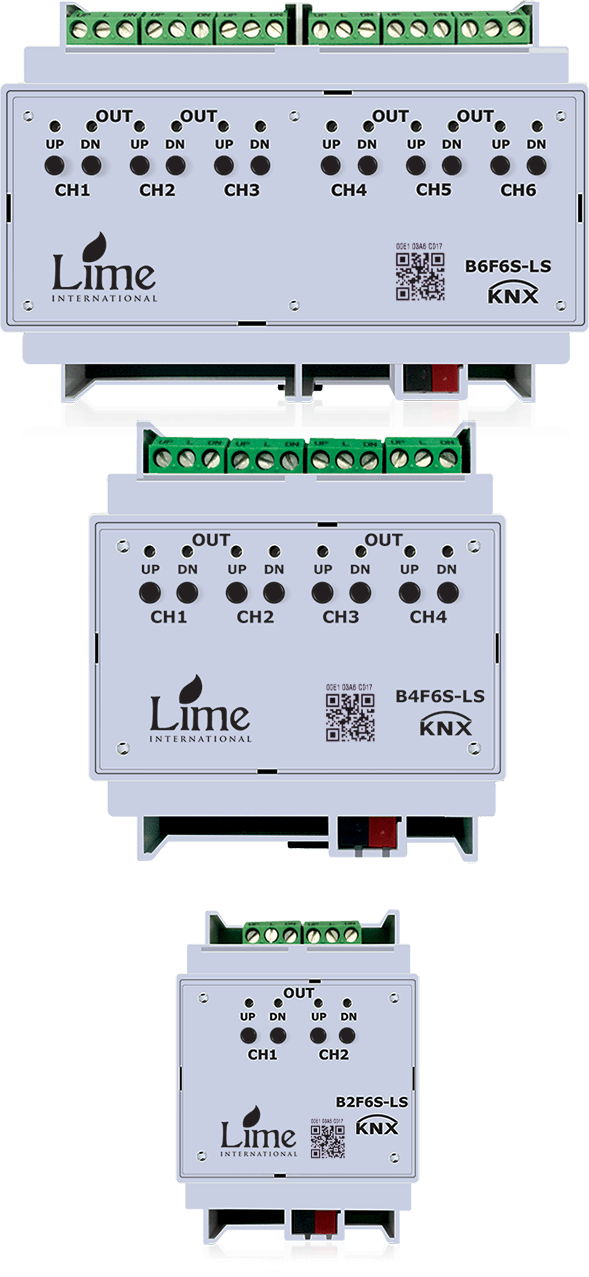

Shutter Actuator
- The netra series 2-fold I 4-fold/ 6-fold shutter/blind-control actuator can control 2 ,4, 6 independent shutter/blind motors.
- The load for each channel is 6A at 250V AC, each channel can be assigned its own mains
- Each channel has buttons for manual operating and switching status LED’s .
- Time functions, positions, scenes (8), alarm function, inhibit function, status
- Mechanical contact locking for each channel
Technical Information | |
|---|---|
| Max. Group addresses | 32 |
| Power supply | 24V DC via KNX |
| Auxiliary power supply | not necessary |
| Protection class | IP 20 |
| Mechanical life-cycle | 10″6 switching operations |
| Operating temperature | -5 … +45°C |
| Rated load per contact | 6A/ 250V AC 50…60Hz |
Dimensions
- B2F6S-L 53 x 90 x 60 (3 RU)
- B4F6S-L 71x 90 x 60 (4 RU)
- BGF6S-L 106 x 90 x 60 (6 RU)
