IOT Gateway

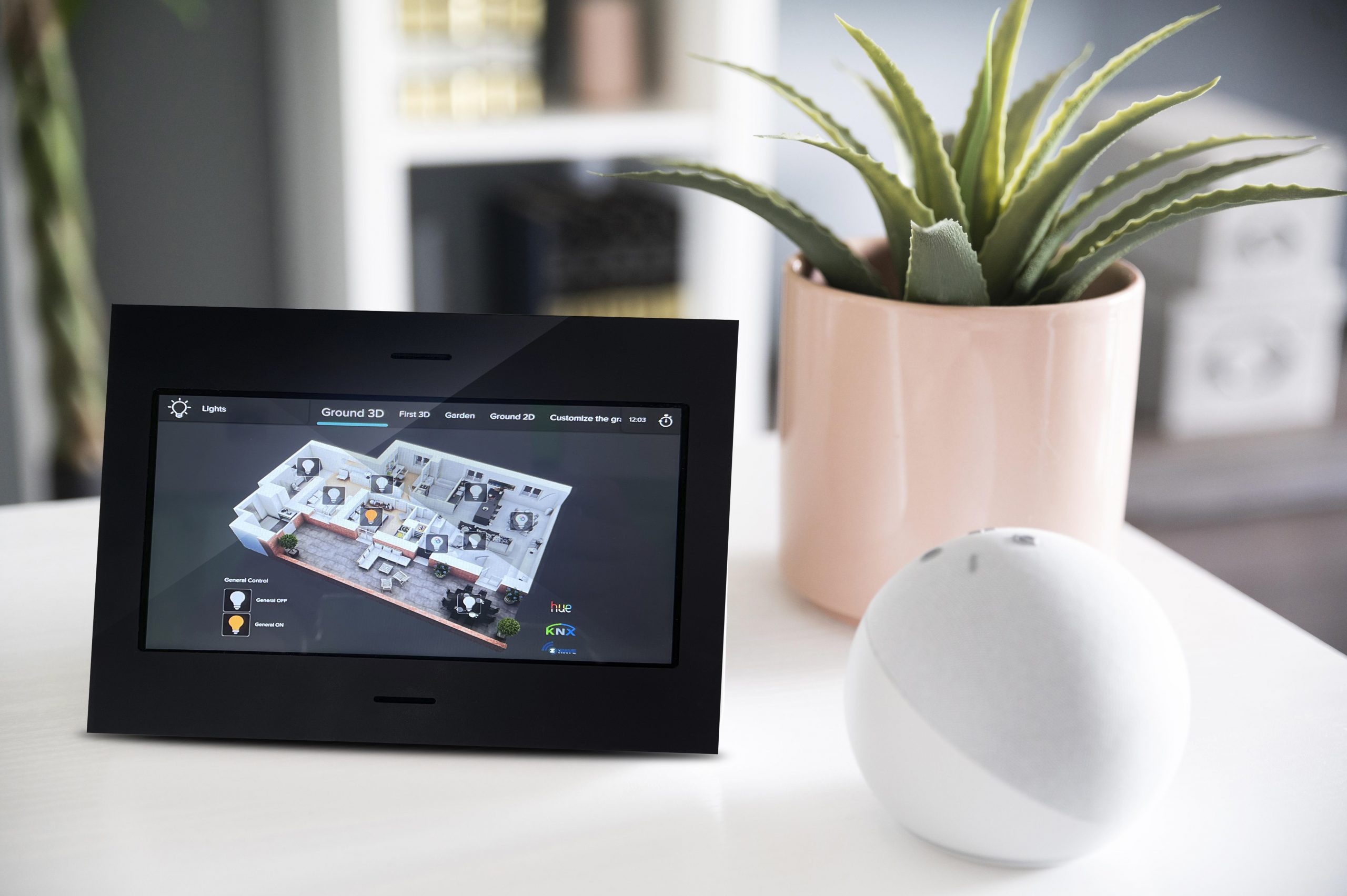

IOT Gateway is an all-in-one Touch Server able to grant the comfort of a touch user interface and the powerful features of a lime IOT Gateway server, all in one device. Through IOT Gateway, the end user is able to control all the installed devices, thanks to the comfortable touch screen with a low power consumption.

Main features

  • Octa-core Cortex A53 CPU
  • Capacitive touch screen 7.0” TFT, visible area 155x87mm, 1024x600 resolution
  • Suite Thinknx PRO
  • Linux operating system
  • KNX net/IP interface/router
  • 1x native EIB/KNX port with direct connection through clips
  • 1x network port
  • 1x USB port
  • 1x RS232 port
  • 1x RS485 port
  • Consumption 10W Max
  • Temperature sensor
  • Humidity sensor
  • Ambience luminosity sensor
  • Power: 12-24VDC – 1.5A Max (power supply not included)
