• The netra-series switching actuators are especially suited for high loads, also capacitive loads, with high start-up peak {C load}.
• The load for each channel is 16A at 250V AC, each channel can be assigned its own mains Each channel is connected to a screw terminal
• Each channel has a button for manual operating and a LED for the switching
• 2 ,4, 6 and 9 channels
• Time functions, logical functions, status, scenes (32), announce function, inhibit function, hour meter
• Load up to 200µF

• Maximum power per contact
• Incandescent lamp load 3680W
• Fluorescent lamp load
• {C max 200uF} 2500 W
• Compensated 3680 W
• Manufactured in Germany

Dimensions

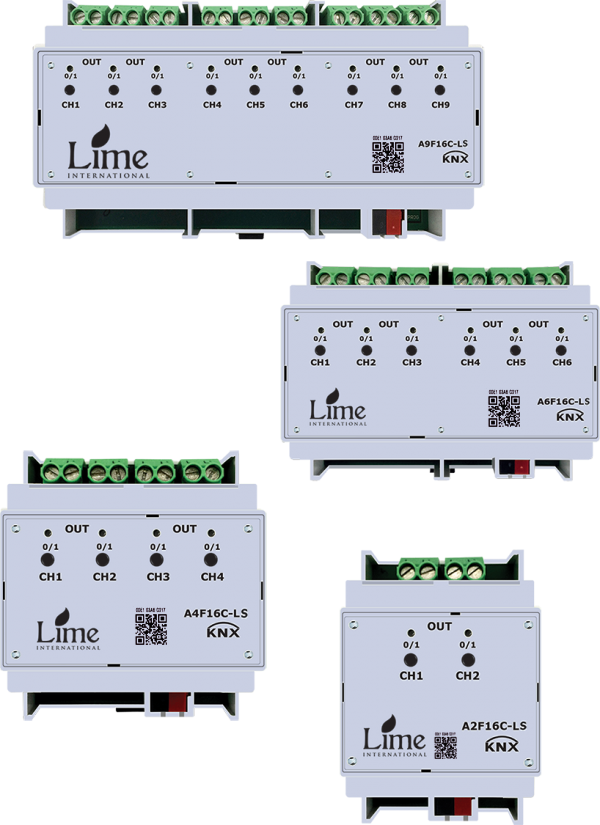

• A2F16C-L 53 x 90 x 60 {3 RU}
• A4F16C-L 71x 90 x 60 (4 RU}
• A6F16C-L 106 x 90 x 60 {6 RU}
• A9F16C-L 159 x 90 x 60 (9 RU}
