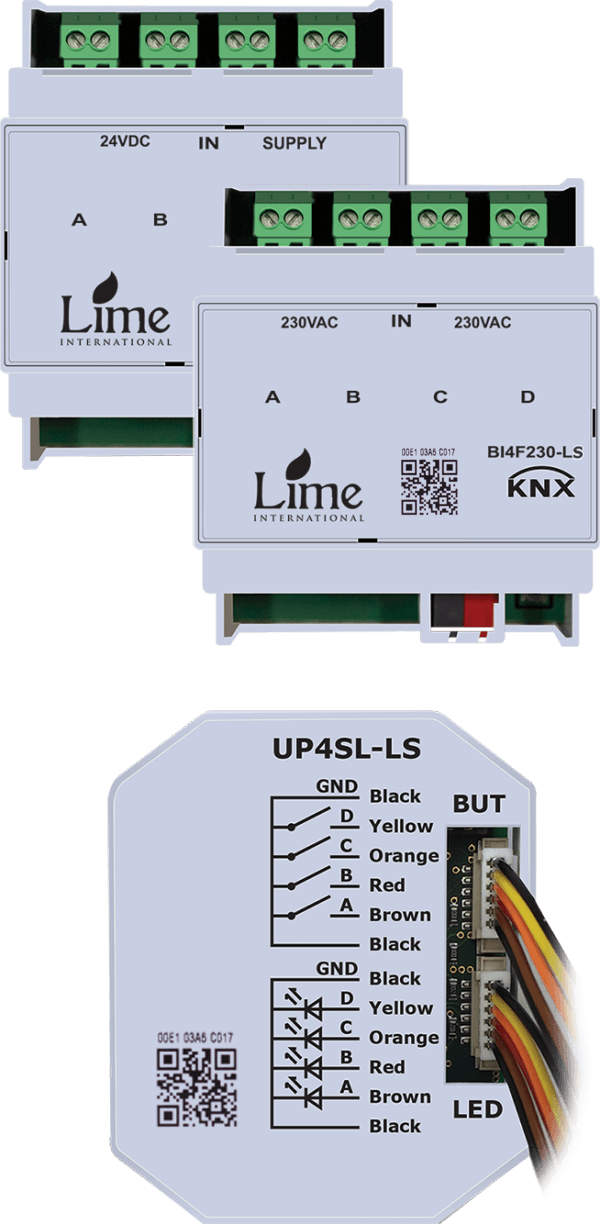

Binary & Universal Interface
The netra series binary inputs can generate bus telegrams on 4 independent channels. The sensing voltage required is supplied by the devices from bus voltage (BI4FS-L) or is 230V (Bl4F230-L) Each channel is connected to a screw terminal.
Technical Information
| Input voltage | potential free max.100m (BI4FS-L)180…250V AC/DC (Bl4F230-L) |
| Auxiliary power supply | not necessary |
| Protection class | IP20 |
| Installation | 35mm DIN rail |
| Max. group addresses | 36 |
| Operating temperature | -5 …. +45 °C |
Discerption
- The new universal pushbutton devices provides separate wire connectors. Rocker function or single buttons points are programmable.
- The universal pushbutton interface from lime is push button interface for 4 single buttons with LED
- Manufactured in Germany
Dimensions
- BI4FS-L 71x 90 x 60 (4 RU)
- Bl4F230-L 71×90 x 60 (4 RU)
